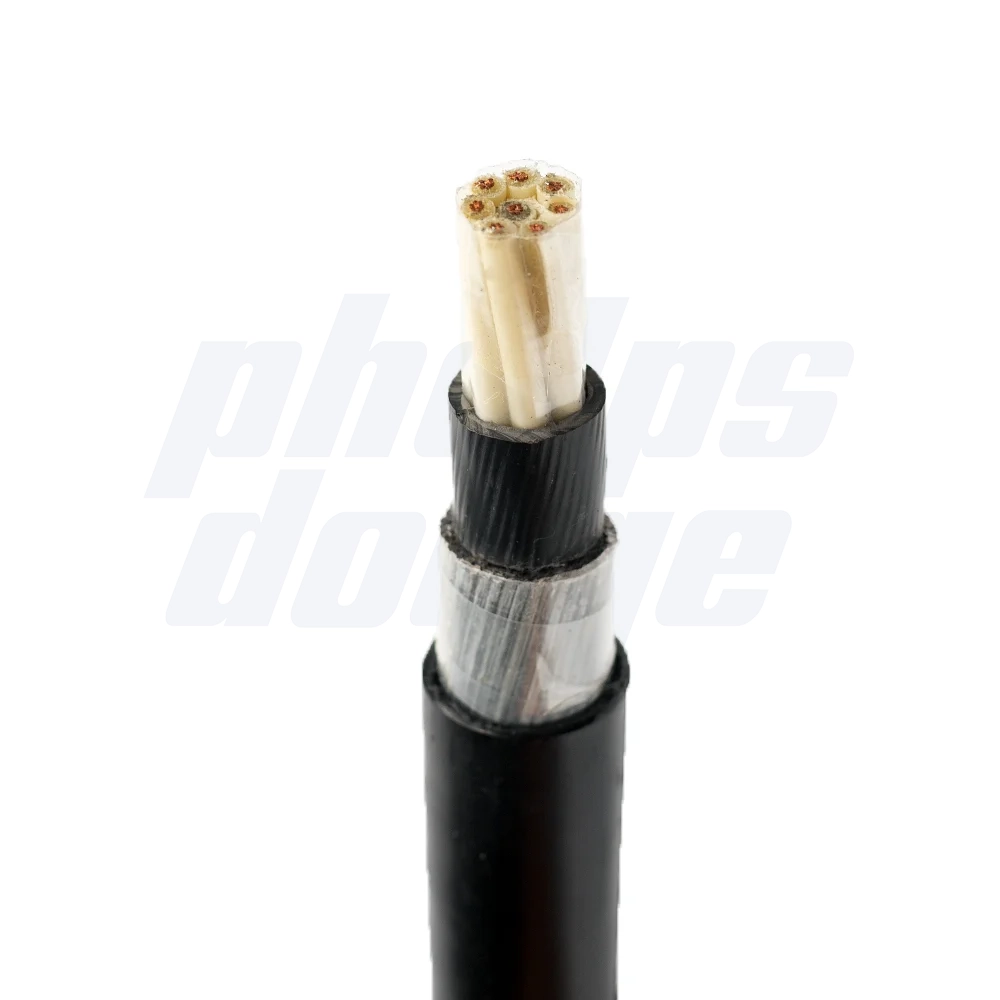

Steel Wire Armored (SWA) Multi-Core Cables

Description

Power cable with 0.6kV to 35kV steel wire armouring.
Copper and Aluminum 8000 series conductor, PVC or XLPE insulation polyester (mylar) tape core wrap power cable with 0.6kV to 35kV steel wire armouring.

Application

For installation in duct or conduit, direct earth burial, and indoor installation in cable tray
For installation where there is a high risk of possible mechanical abuse or movement
Can be installed in underground system

Specification

2.0mm² – 500mm² (14AWG – 1000MCM) for LV
14mm² – 500mm² (6AWG – 1000MCM) for MV
Insulated Cable Engineers Association (ICEA) S – 95 – 658 (Low voltage; LV)
International Electrotechnical Commission (IEC) 60502 – 1 (Low voltage; LV), 60502 – 2 (Medium voltage; MV)
Philippine National Standards (PNS)

Features

CABLE STANDARD:
Insulated Cable Engineers Association (ICEA) S – 95 – 658 (Low voltage; LV)
International Electrotechnical Commission (IEC) 60502 – 1 (Low voltage; LV), 60502 – 2 (Medium voltage; MV)
Philippine National Standards (PNS)
