Solar Cables (Photovoltaic Wires)
Solar Cables (Photovoltaic Wires)
Description

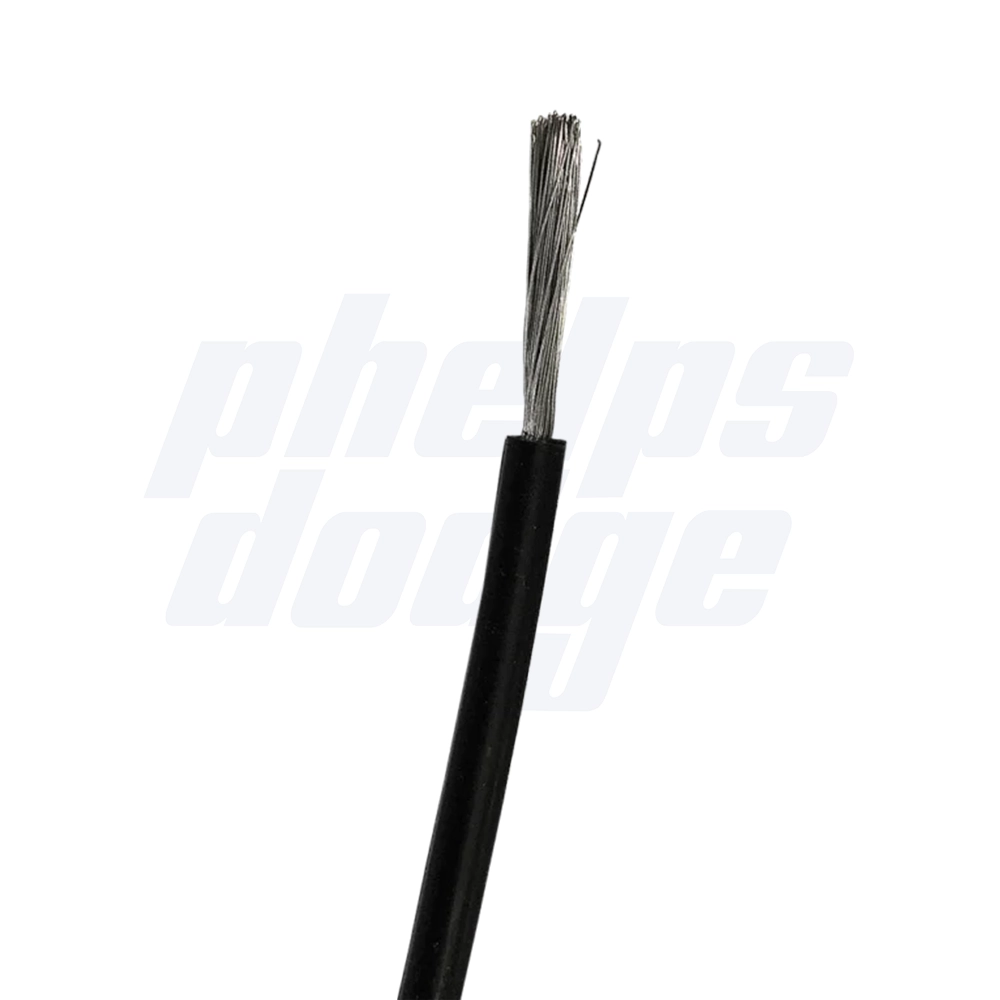

Annealed Tinned Flexible Copper Conductor, class 5, with Black XLPO 120ºC insulation and UV resistant XLPO jacket.
Resistance against UV, water, ozone, fluids, oil, salt & general weathering
• Cross-linked, Polyolefin, Halogen-free, flame retardant, low-smoke emission
• Fire Retardant meets IEC 60332-1-2
• RoHS Compliant as per EU
• Voltage Rating: 600/1000 VAC; 1800 VDC
• Maximum Temperature Rating: 120°C
Application
- Widely used as wiring in photovoltaic (PV) system, and used in high temperature application for solar panels
Specification
CABLE STANDARD:
EN 50618
SIZE RANGE:
1.5mm² to 300mm²
CONDUCTOR IDENTIFICATION:
Black or black with red stripe
Features
STANDARD PACKAGING:
In spools of 500meters
THIRD PARTY CERTIFICATION:
TUV RHEINLAND 60122925
TUV RHEINLAND R50345247
