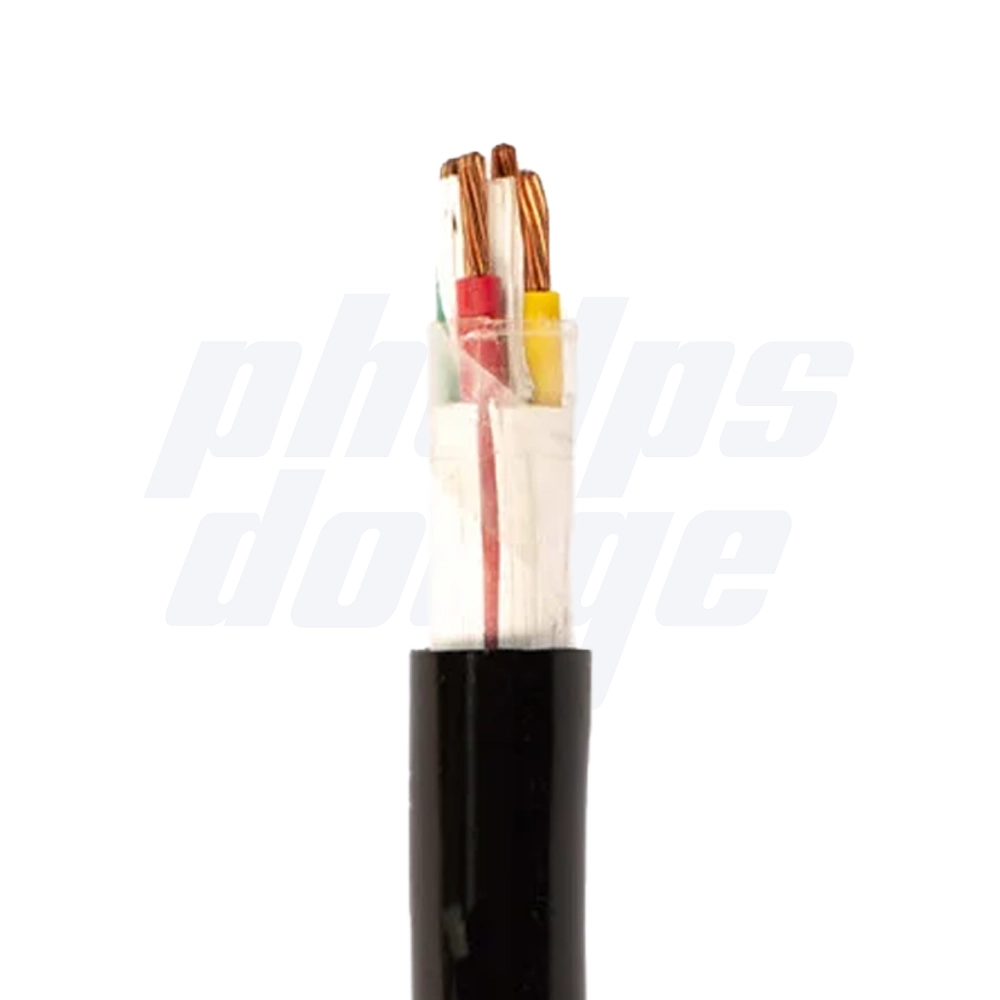

PD® CONTROL CABLES

PD® CONTROL CABLES

Description

Tinned or uncoated copper conductors, PVC/LSHF/XLPE-insulated (shielded or unshielded)
armored SWA or un-armored, PVC/LSHF-jacketed

CABLE STANDARD
• International Electrotechnical Commission (IEC) 60502 – 1 (power cable)
• Insulated Cable Engineers Association (ICEA) S – 95 – 658 (power cable), S – 73 – 532 (control cable

CONDUCTOR IDENTIFICATION
• numerically or color-coded, multi conductors

Application

For installation in duct or conduit, direct earth burial and indoor installation in cable
tray

Specification

• 0.5mm² – 7mm² (20AWG – 9AWG) for Control Cables
• 8mm² – 500mm² (8AWG – 1000MCM) for Power (PLC) Cables
• Multi core control cables: From 2 core to 61 core, 0.5mm² to 5.5mm²

Features

STANDARD PACKAGING
In coils and reels

THIRD PARTY CERTIFICATION
• Underwriters Laboratories
