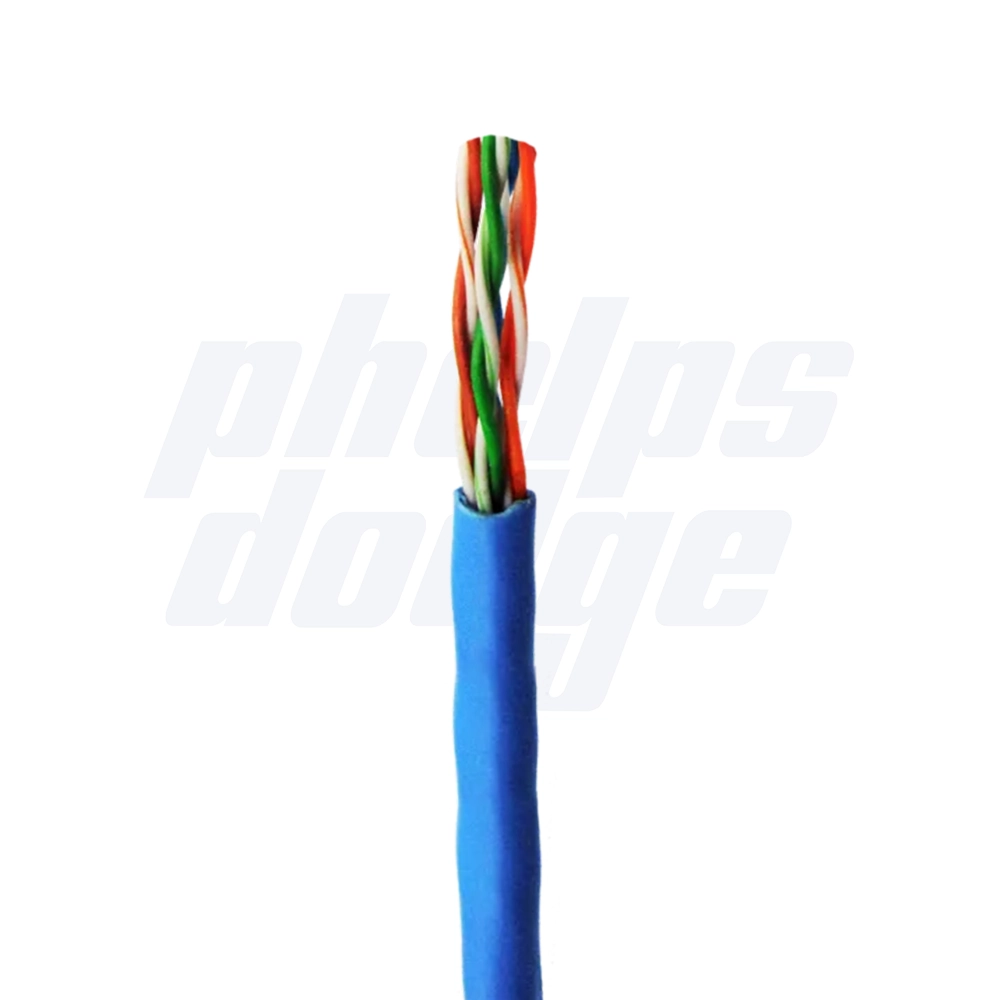

LAN Data Cables
LAN Data Cables
Description
Suitable for both voice and high speed data applications in Local Area Networks (LAN)
Application
Suitable for both voice and high speed data applications in Local Area Networks.
- 10 Base-T (IEEE 802.3)
- 100 Base-T (IEEE 802.3)
- 4/16 Mbps Token Ring (IEEE 802.5)
- 52/155 Mbps ATM
- 100 VG-AnyLAN
- 100 Mbps TP-PMD (ANSI X3T9.5)
- 1000 Base-T (Gigabit Ethernet)
- Broadband and baseband analogue video
- Digital video
Specification
Compliances:
- AS/NZS 3080:2003 (Cat 5e)
- ISO/IEC 11801 Ed.2 (Cat 5e)
- ANSI/TIA 568-C.2 (Cat 5e)
- AS/CA S008:2010
- UL Verified (Cat 5e)
- UL Listed Type CMX
- UL Listed Type CMR
Conductor:
- Plain Annealed Copper Wire (24 AWG)
Insulation:
- High Speed Data Grade Polyolefin
- Pair 1-White/Blue & Blue
- Pair 2-White/Orange & Orange
- Pair 3-White/Green & Green
- Pair 4- White/Brown & Brown
Sheath:
Flame Retardant PVC
Qualified to be used as a riser cable
Cable printed with meter marking
Technical Specifications:
Item No.: 24170xxx
- XXX=021 for Blue
- XXX=096 for Grey
- XXX=199 for White
- Other colors available on request
Nominal Overall Diameter (mm): 4.9
Conductor:
- Number of pairs: 4
- Number & Diameter of wires: 1/0.51
Approx. Mass (kg/km): 29
Min. Bending Radius: 20
Features
Environmental Performance
Installation temperature -10°C to 40°C
Operating Temperature -20°C
NOTE:
- These cables are not to be regarded as power cables or for the direct connection of equipment to mains power supplies
- All limits stated are based on measurements made or corrected to 20 °C.
- Attenuation, NEXT, FEXT and RL are obtained by swept frequency measurements.
- Characteristic Impedance is derived by applying a smoothing function to sweep frequency input impedance measurements.
- NVP is supplied for installation equipment to return cable jacket length.
