Instrumentation Cables
Instrumentation Cables
Description

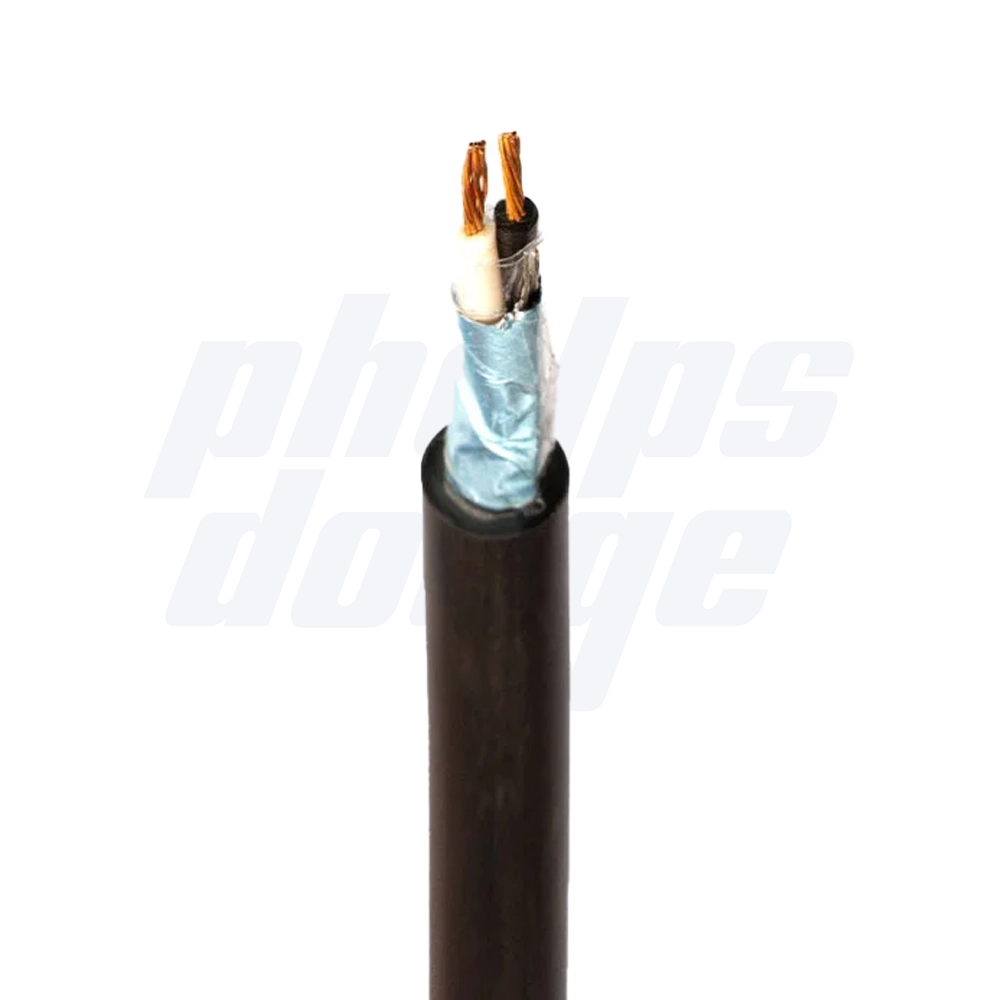

Stranded tinned and uncoated copper wires, PVC/LSHF/XLPE-insulated (individually shielded IS or overall shielded OS) armored SWA or un-armored, PVC/LSHF-jacketed, rated 300 or 600 volts.
Application
- For control circuits like supervisory cables for monitoring, data gathering, and interconnection with protective devices;
- 600V / 60ºC to 90ºC
Specification
SIZE RANGE:
0.5mm² to 5.5mm² (20AWG – 10AWG)
CONDUCTOR IDENTIFICATION AND GROUPINGS:
Numerically or color-coded, multi-conductors
Pair, triad or quad
Features
CABLE STANDARD:
- Insulated Cable Engineers Association (ICEA) S 73-532
- Underwriters Laboratories (UL) – 2250 – Tray Cables 300 V, UL – 1277 – 600V, UL – 3 – 330V, Power Limited Tray Cables
- EN – 50228 – 7 – 90, 300, 500V
- International Electrotechnical Commission (IEC) – 60092 – 376 – 150/300V
- British Standard (BS) 5308 – 300/500V
- Various specialized design options available to meet specific electrical, physical and environmental and fire performance requirements of customs
